Category: Vertical

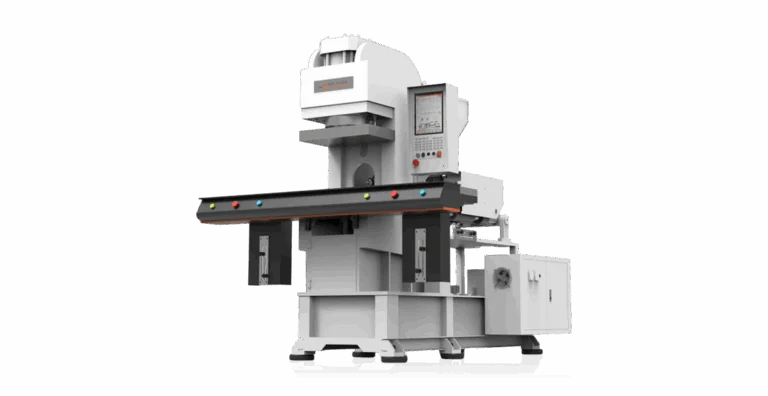

Your browser does not support the video tag. 55-85T No Tie Bars. No Limits on Access. The C Series combines tieless vertical clamping with horizontal injection for maximum mold accessibility in a compact package. With no tie bars, the mold is completely unobstructed on all sides: inserts load freely, robots move without interference, and mold […]

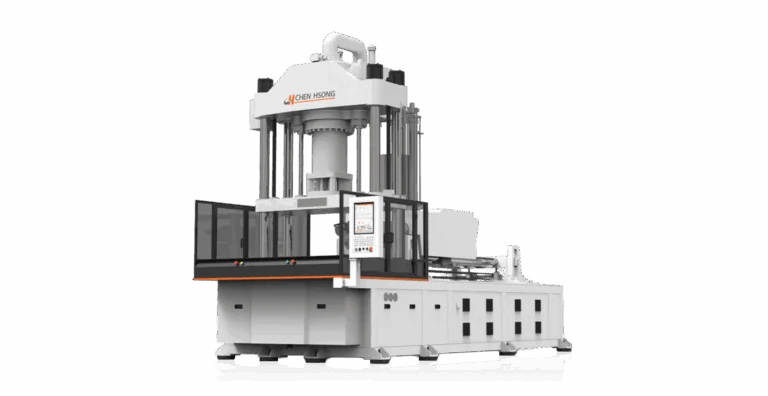

Your browser does not support the video tag. Vertical Clamping. Horizontal Injection. The H Series combines vertical clamping with a horizontal injection unit. This gives you the insert-loading advantages of vertical clamping, where gravity holds inserts in place, together with the injection performance of a horizontal unit: larger shot capacity, better plasticising, and easier screw […]

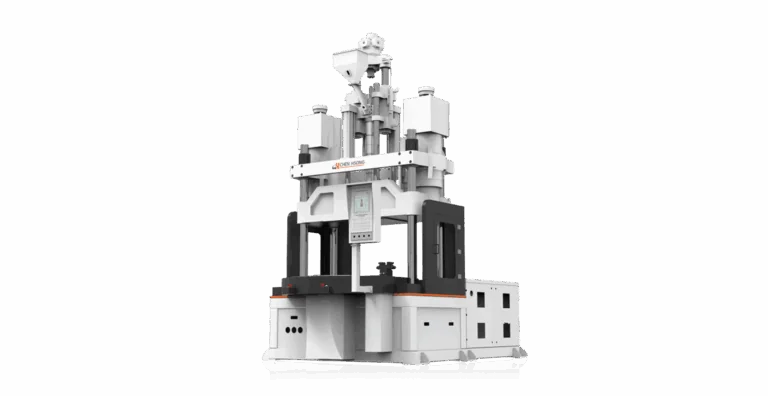

Your browser does not support the video tag. Low Work Height. High Output. The W Series is Chen Hsong’s low work height rotary table vertical injection molding machine, designed for operations that require frequent manual insert loading at a comfortable working height. Tieless two-platen clamping with a large-diameter rotary table provides maximum mold accessibility, with […]

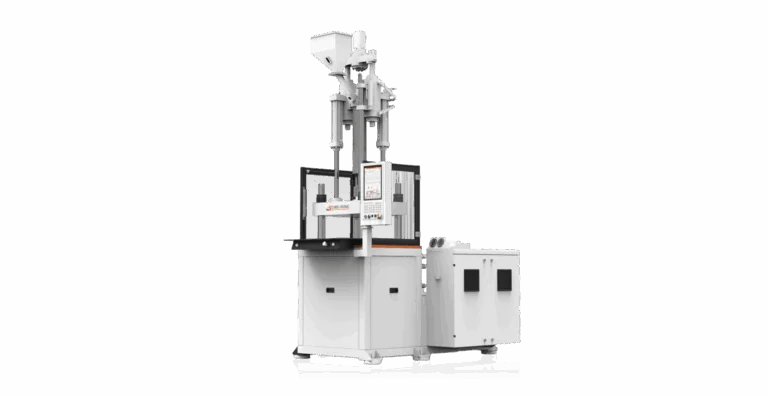

Your browser does not support the video tag. One Platform. Four Ways to Load. The V Series is Chen Hsong’s vertical clamping and vertical injection platform for insert molding and overmolding. Vertical clamping with vertical injection keeps inserts in place by gravity during molding, eliminating the need for complex fixturing. All four configurations share common […]
