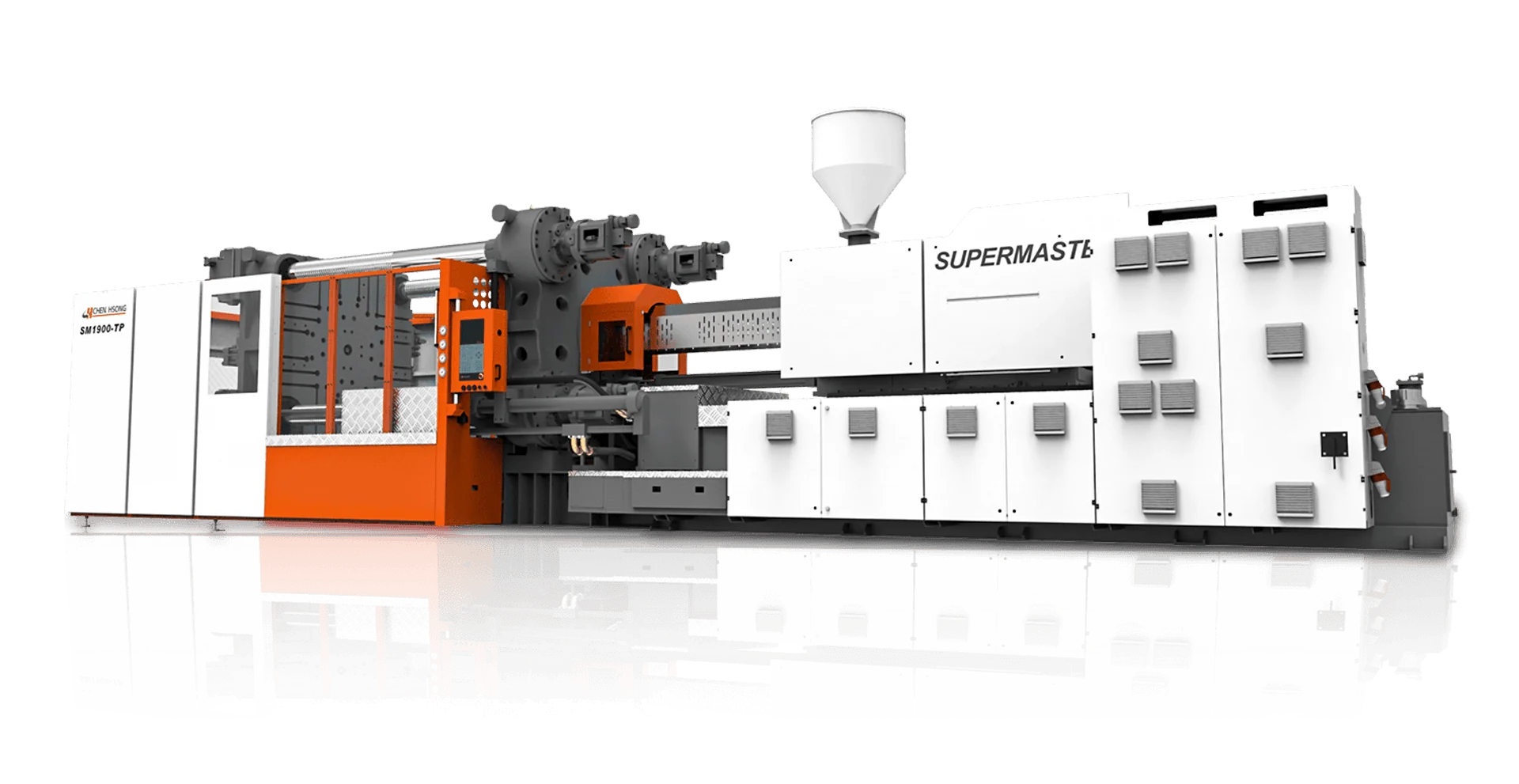

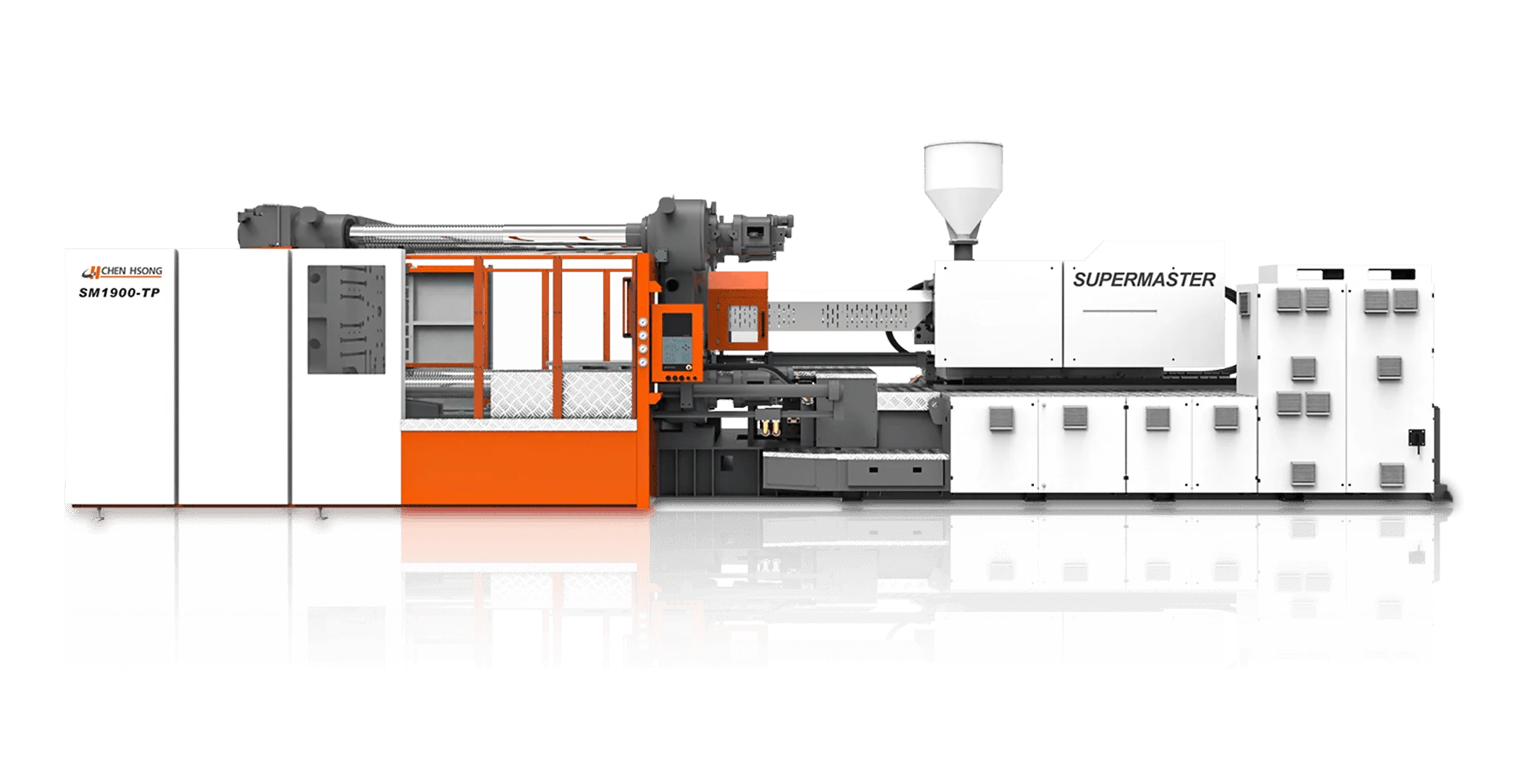

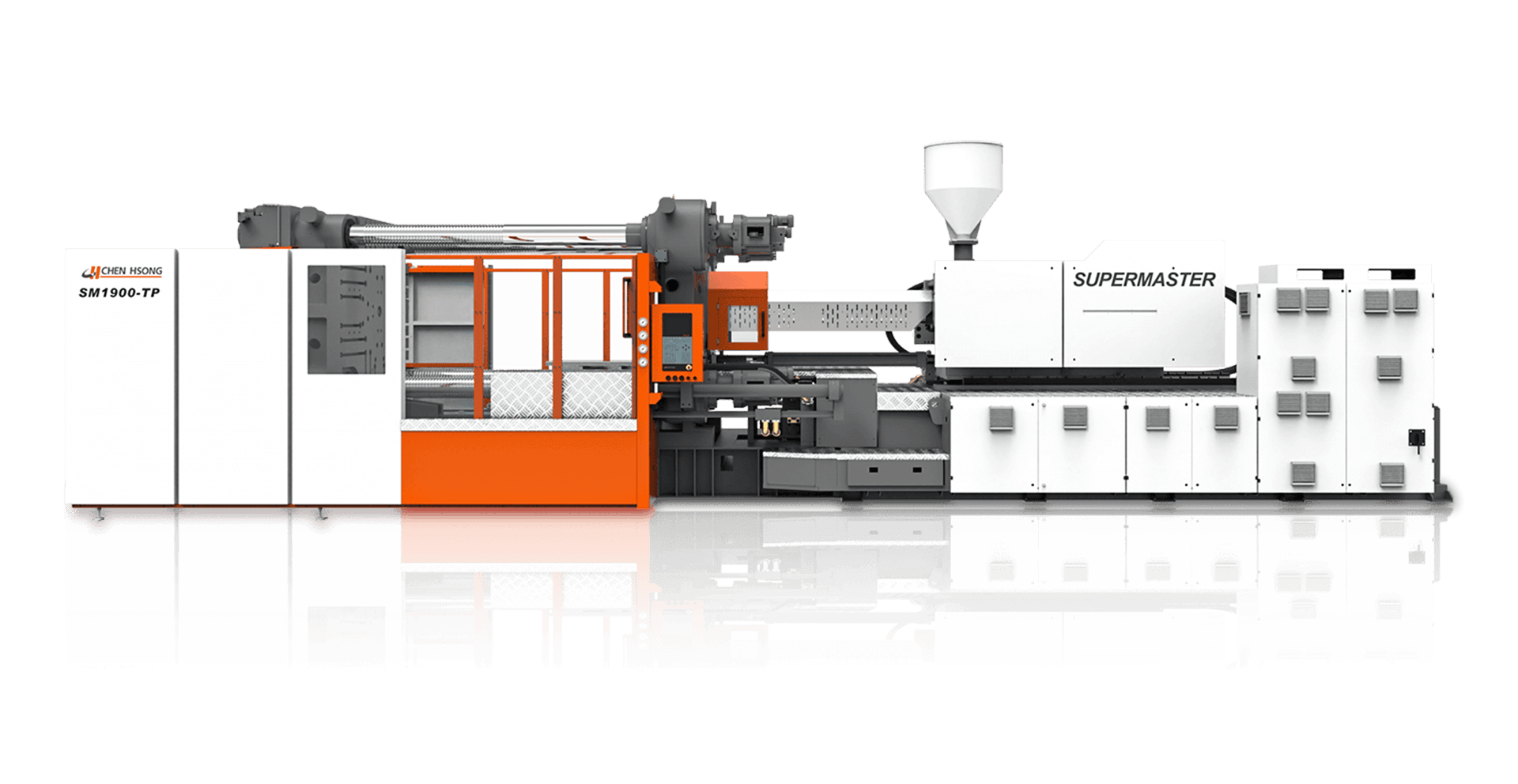

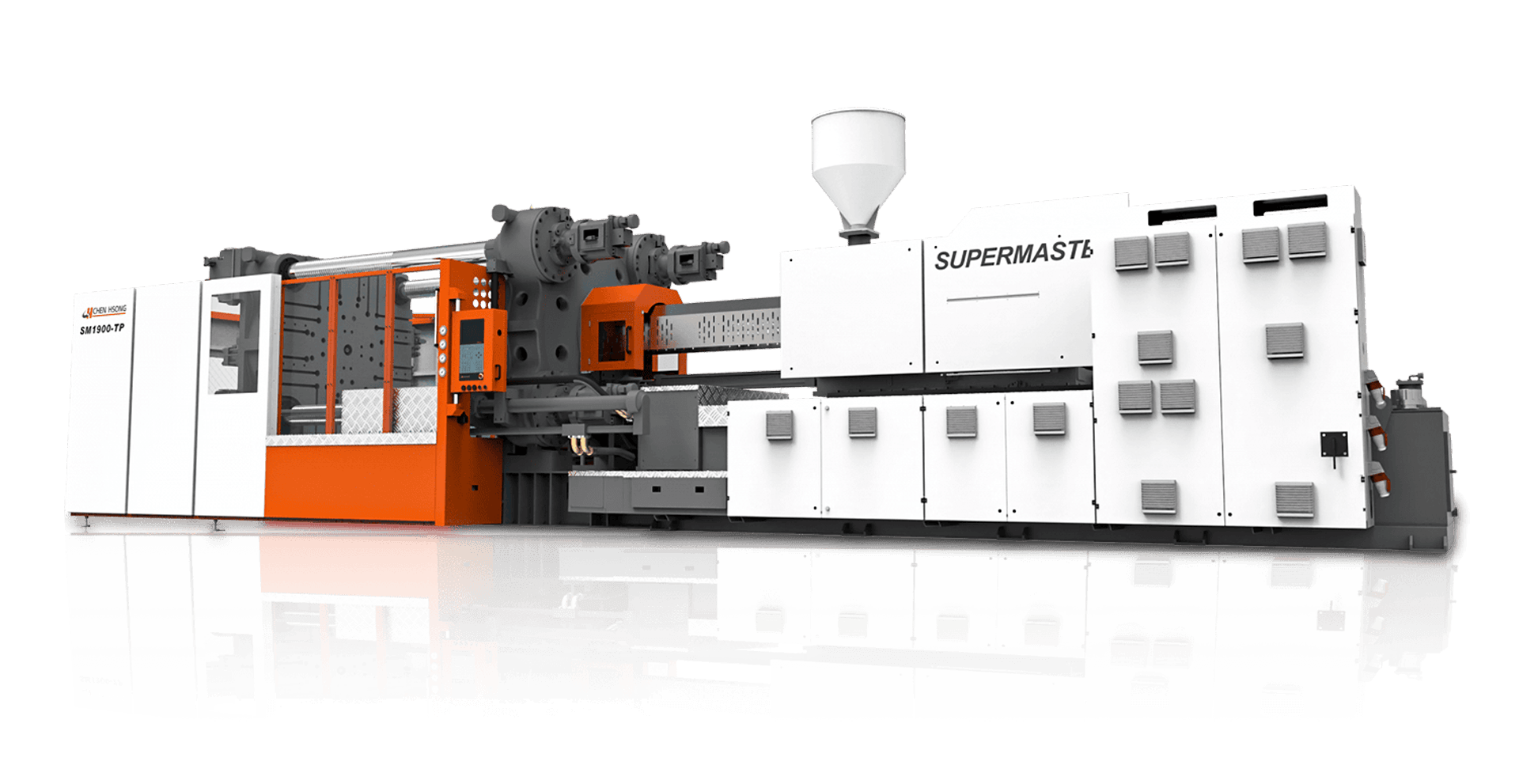

The Supermaster TP is a true two-platen injection molding machine delivering 700 to 6,500 tonnes of clamping force in a footprint significantly shorter than equivalent toggle machines. Protected by 4 international patents and refined through nearly 30 years of two-platen development, the platform represents Chen Hsong’s deepest engineering expertise in large-tonnage injection molding.
13 clamping units and 14 injection units in a mix-and-match configuration system. Patented circular platens, patented high-speed automatic mold adjustment, patented interlock mechanism for silent high-speed operation, and NON-STOP™ reliability architecture with annual downtime as low as 0.5%. Opening stroke and daylight up to 50% greater than comparable toggle machines. Regional configurations available for Europe, India, North America, South America, and other major markets.
A two-platen machine delivers the same clamping force as a toggle machine in a significantly shorter overall length, because there is no rear platen or toggle linkage.
The Supermaster TP also provides up to 50% more opening stroke and daylight than comparable toggle machines, making it better suited for deep-draw parts and large molds. When floor space is limited but high tonnage and large mold capacity are required, two-platen is the standard choice.
NON-STOP™ is Chen Hsong’s proprietary reliability architecture for the Supermaster TP. It combines built-in redundancy, predictive maintenance readiness, and durable mechanical design to achieve annual downtime as low as 0.5%. For operations running 24/7, this translates directly to higher output and lower unplanned maintenance cost.
The Supermaster TP is designed for large-part production: automotive bumpers and panels, large home appliance housings, logistics crates and pallets, industrial containers, municipal infrastructure products, and environmental equipment.
Any application requiring 700 to 6,500 tonnes of clamping force with large mold capacity and a compact machine footprint.
The Supermaster TP offers 13 clamping units (700 to 6,500 tonnes) and 14 injection units (shot weight 1,968g to 106,081g) in a mix-and-match system.
This means you can select the exact combination of clamping force and injection capacity for your specific application, rather than being limited to fixed machine configurations.
The MK6 Large (800-1,650T) and the lower end of the Supermaster TP range overlap on tonnage. The Supermaster TP is a two-platen machine with a shorter footprint, up to 50% more opening stroke and daylight, and uniform clamping force distribution.
The MK6 Large is a toggle machine with the proven MK6 platform and broader application flexibility at large tonnage. Choose the Supermaster TP when floor space is limited, molds are large or deep-cavity, or when you need above 1,650 tonnes.
Choose the MK6 Large when you prefer toggle-based clamping for general large-part production.
The Supermaster TP covers 700 to 6,500 tonnes with 13 clamping and 14 injection units in a mix-and-match system. The TP-SMART covers 550 to 1,700 tonnes with a modular, smart design at a more accessible machine class. Both share Chen Hsong’s patented two-platen technology, NON-STOP™, and Precision Hydraulics™.
Choose the Supermaster TP for maximum tonnage, the widest configuration flexibility, and the largest molds. Choose the TP-SMART for smart modular two-platen performance at mid-to-large tonnage.
The Supermaster TP uses the SVP/2 second-generation servo drive system combining a fast-response gear pump with a high-precision servomotor. This delivers up to 80% energy saving compared to traditional fixed-pump hydraulic machines, with response speed more than double that of a variable displacement pump.
Chen Hsong provides installation, training, maintenance, and technical support through more than 120 service locations worldwide. More than a thousand Supermaster TP units have been deployed globally, with dedicated large-machine service teams in major manufacturing regions.
EUROMAP and SPI mold standards. B&R, KEBA, and Beckhoff controller options available by region. Local service support in 85+ countries.
