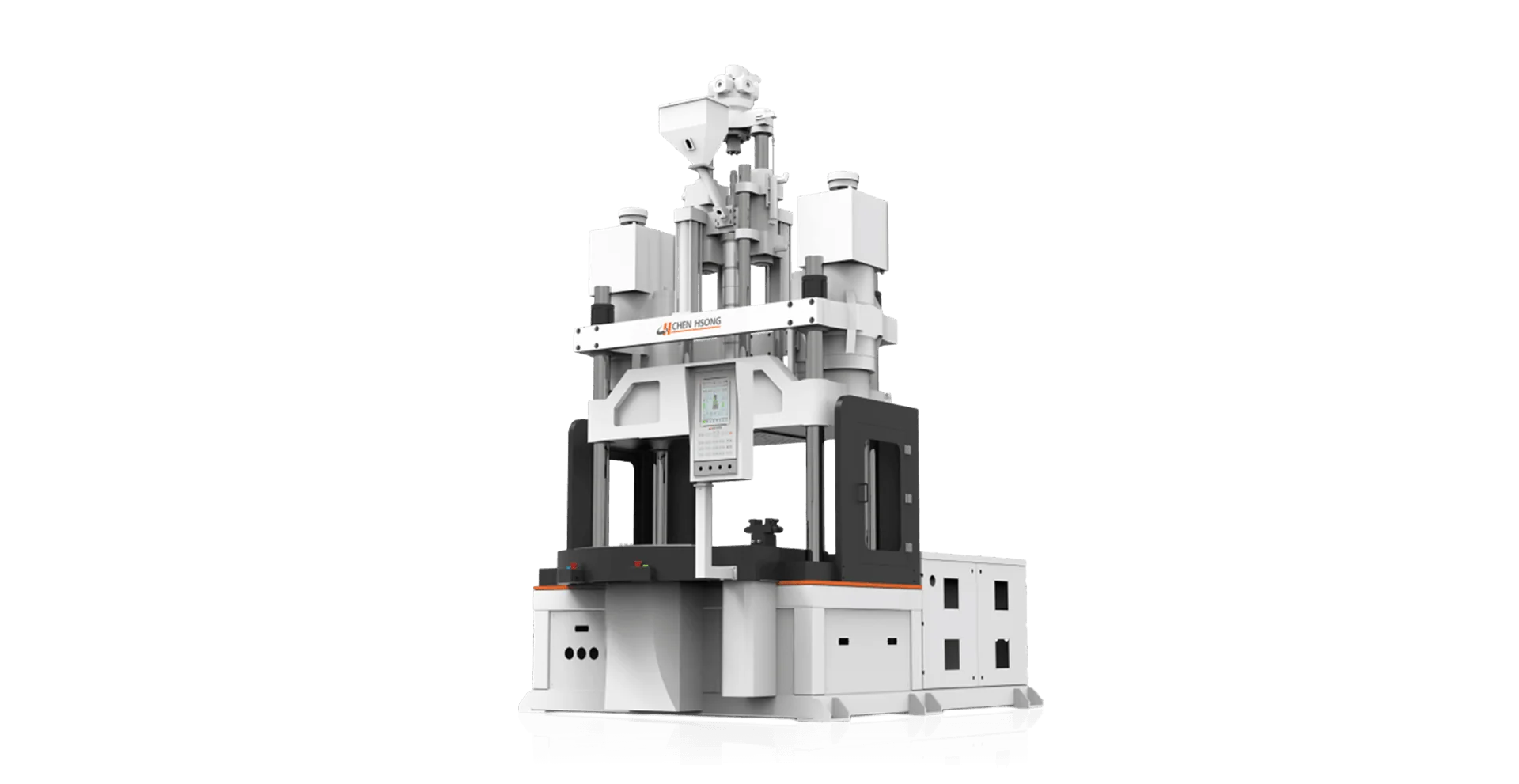

The W Series is Chen Hsong’s low work height rotary table vertical injection molding machine, designed for operations requiring frequent manual insert loading at a comfortable working height. Two-platen tieless clamping with a large-diameter rotary table provides maximum mold accessibility with no tie bars to obstruct loading. Dual-station rotary design alternates loading and molding for continuous production.
Wider tonnage range than the V Series, from 85 to 600 tonnes across ten models in two sub-ranges (WF85-WF250 and WF300-WF600). Larger round rotary platens from φ980mm to φ2000mm accommodate bigger molds and heavier inserts. Hydraulic servo system standard for precise clamping control. Dual-mold dynamic injection control standard for independent parameters per station. Same mode options as the V Series: standard, single-slide, double-slide, rotary, and two-colour configurations.
The V Series uses vertical clamping with tie bars and a toggle mechanism. The W Series uses tieless two-platen clamping with no tie bars, providing maximum mold accessibility. The W Series is designed specifically for low work height operation, making manual insert loading more ergonomic.
The W Series also covers a wider tonnage range (85 to 600 tonnes vs 35 to 200 tonnes for V Series) with larger round rotary platens. Choose the W Series when ergonomics, mold accessibility, or higher tonnage is required.
In insert molding, operators frequently load inserts by hand, often hundreds of times per shift. Standard vertical machines can be tall, forcing operators to reach up to load inserts, causing shoulder and back fatigue.
The W Series positions the loading area at a comfortable natural arm height, reducing physical strain, improving placement accuracy, and allowing operators to work productively for full shifts.
Tieless clamping removes tie bars entirely, providing unobstructed access to the mold from all sides. This makes insert loading faster and easier, simplifies mold changes, and improves automation integration since robots have clear paths to the mold area.
It also allows larger molds relative to the machine tonnage since mold size is not limited by tie bar spacing.
The W Series is designed for applications requiring frequent manual insert loading at comfortable working height: automotive connectors and sensors, consumer electronics with multiple metal inserts, industrial components, and any high-volume insert molding where operator ergonomics directly affects productivity and quality. The larger tonnage range also suits heavier insert assemblies.
Yes. The W Series includes safety light curtain and acrylic safety door with interlock as standard. The tieless clamping design is especially automation-friendly since robots have clear, unobstructed paths to the mold area from all sides. Centralised utility connections on rotary configurations simplify peripheral integration.
Chen Hsong provides installation, training, maintenance, and technical support through more than 120 service locations worldwide. The vertical series shares common components across V, W, H, and C variants, ensuring reliable spare parts availability.
EUROMAP and SPI mold standards. B&R, KEBA, and Beckhoff controller options available by region. Local service support in 85+ countries.
