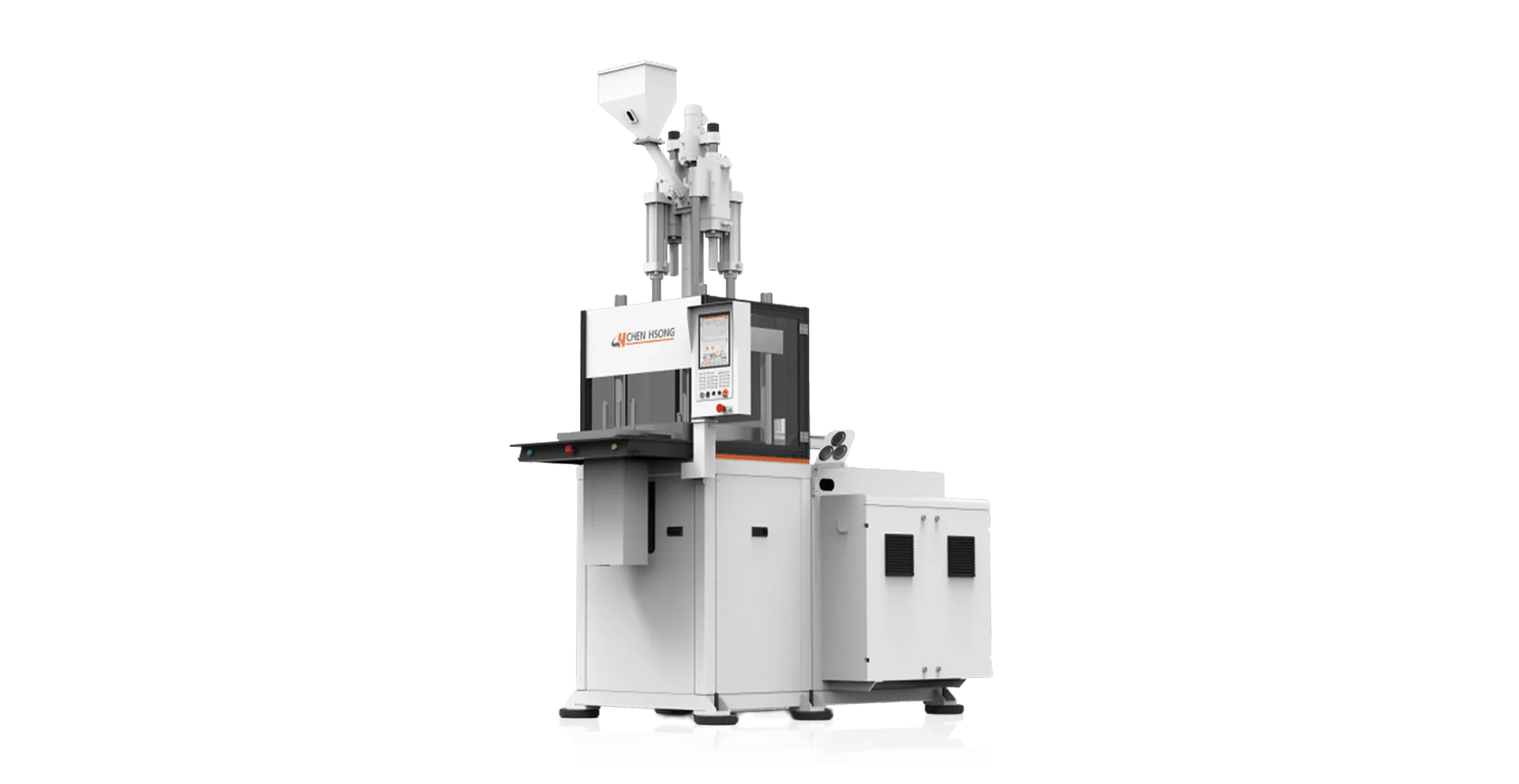

The V-S Single-Slide adds a sliding lower platen to the V Series platform. The lower platen slides out from under the clamping unit, giving operators clear access to load inserts, position components, and remove finished parts without reaching into the mold area. This improves ergonomics, reduces cycle time, and lowers the risk of misplaced inserts compared to a fixed platen design.
Same vertical clamping and injection performance as the V Standard, with ejector position scale control, ejector return confirmation, and ejector holding function all standard on the sliding platen variant. Slide plate positioning device available for precise and repeatable platen return. Six models from 35 to 200 tonnes. Part of Chen Hsong’s vertical platform family with a clear upgrade path to Double-Slide or Rotary configurations as production volume grows.
Both share the same vertical clamping and injection platform. The V Standard has a fixed lower platen. The V-S adds a sliding lower platen that slides out for easier insert loading and part removal.
The V-S also adds ejector position scale control, ejector return confirmation, and ejector holding function as standard. Choose the V-S when operators need clear access to load inserts or when ergonomics is a priority.
Choose the V-S Single-Slide when insert loading time is short enough that one station is sufficient, or when floor space is limited.
Choose the V-SD Double-Slide when insert loading takes significant time and you want to load inserts on one side while the other side molds, effectively doubling output. The V-SD requires more floor width for the two sliding platens.
The V-S is ideal for insert molding applications where operators manually load inserts: electrical connectors, terminals, automotive components, cable assemblies, and precision plastic parts with metal inserts.
The sliding platen is especially valuable when inserts are delicate, require precise positioning, or when multiple inserts must be loaded per cycle.
Yes. The V-S includes safety light curtain and acrylic safety door with interlock as standard on the larger models. Robot interface is supported. Slide plate positioning device is available for automated workflows requiring precise and repeatable platen positioning.
EUROMAP and SPI mold standards. B&R, KEBA, and Beckhoff controller options available by region. Local service support in 85+ countries.
